What Conveying Equipment is Best for Fragile or Sticky Products?

Choosing the right conveyor is critical for fragile or sticky products in automated lines. Fragile items break from impact; sticky items adhere and cause feeding issues. The best choice depends on product traits, speed, and process. This guide compares options and offers selection advice.

Why Product Characteristics Matter in Conveying?

Fragile items like chips and fresh produce crack from vibration or drops; sticky items like gummy candy and dates stick to surfaces, causing buildup and inconsistent weighing.

Before selecting conveying equipment, consider:

• Product fragility
• Stickiness and moisture content
• Product size and shape
• Product density
• Flowability
• Required conveying speed
• Required weighing accuracy
• Cleaning and sanitation requirements

Understanding these characteristics helps determine whether a standard conveyor is sufficient or whether a specialized conveying solution is needed.

What Conveying Equipment Is Suitable for Fragile Products?

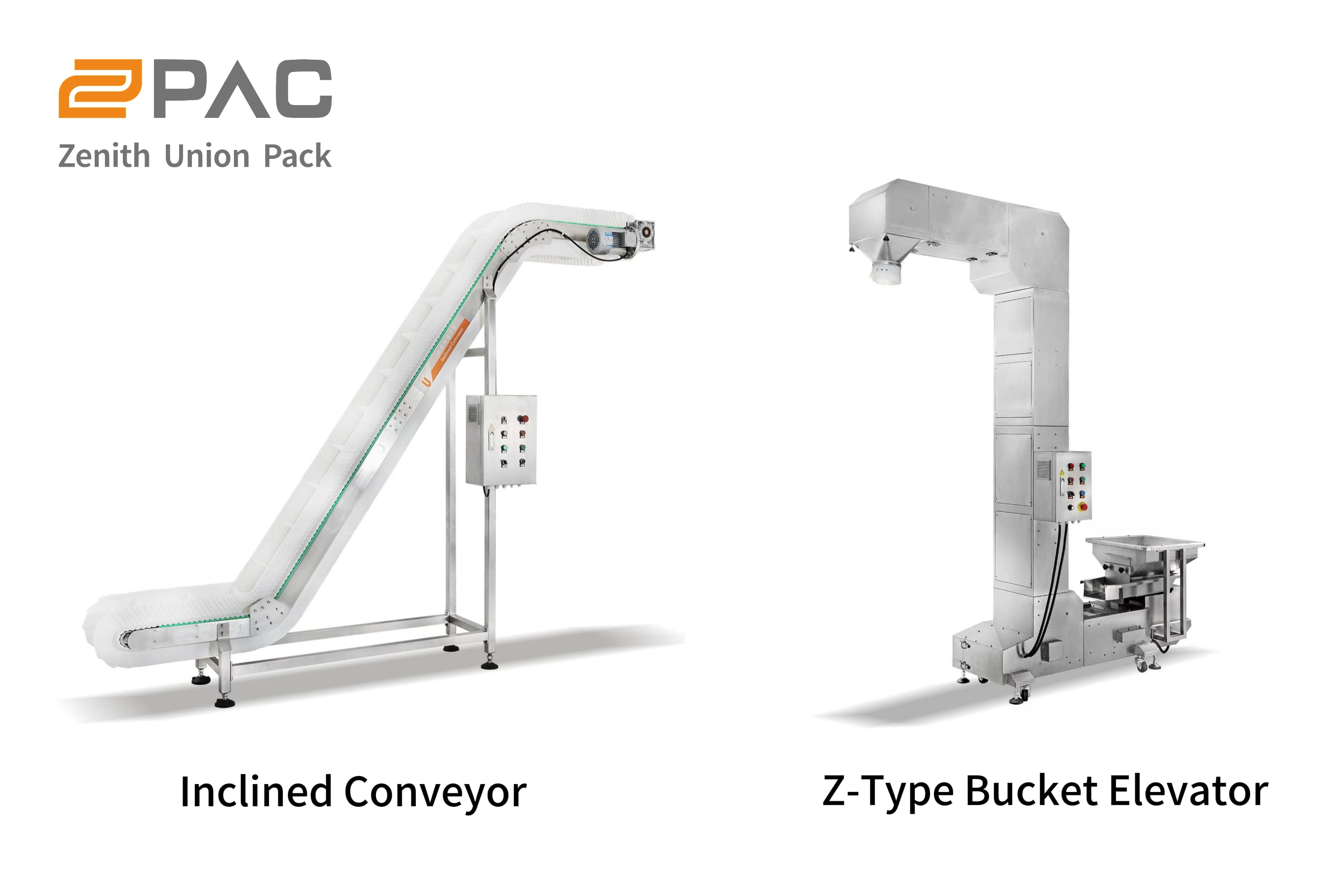

The answer is Z Bucket Elevator.

A Z bucket elevator can be a suitable solution for transporting fragile food products to a multihead weigher.

Instead of continuously pushing products along a belt, the product is carried in individual buckets and lifted to the required height. This can help reduce unnecessary product movement and provide controlled feeding into the weighing system.

Z bucket elevators are commonly used for products such as:

• Potato chips
• Nuts
• Biscuits
• Candy
• Frozen foods
• Vegetables
• Other granular or irregular products

The bucket-based conveying method can also make it easier to control the amount of product delivered to the weighing machine. For automated weighing and packaging lines, a Z bucket elevator is often installed between the feeding system and the multihead weigher.

What Conveying Equipment Is Suitable for Sticky Products?

The answer is food-grade belt conveyors.

Food-grade belt conveyors can be considered for some sticky or moist products, particularly when the belt material and surface design are selected according to the product characteristics.

A suitable belt can provide smooth transportation while reducing unnecessary product damage. However, the belt surface should be evaluated carefully because products with high moisture or strong adhesion may still cause buildup.

For sticky products, important considerations include:

• Belt material
• Belt surface texture
• Product moisture
• Cleaning requirements
• Conveyor inclination
• Product residence time on the belt

In some applications, a customized conveyor surface may provide better performance than a standard belt.

What Is the Best Conveyor for Both Fragile and Sticky Products?

Some products have both characteristics. For example, certain confectionery products may be relatively soft and sticky, while fresh or processed foods may be delicate and prone to deformation.

In these cases, the conveying system needs to balance two requirements: Gentle product handling + stable product flow.

A bucket-based conveying system can be a practical option when products need to be elevated while minimizing excessive impact. For horizontal transportation, a food-grade conveyor with an appropriate belt surface may be more suitable.

The best solution depends on the actual product rather than simply whether it is classified as “fragile” or “sticky.”

How to Choose the Right Conveying Equipment

1. Product Characteristics

Determine whether the product is fragile, sticky, wet, granular, irregular, or free-flowing. Products with different characteristics may require different conveyor designs, materials, and feeding methods.

2. Required Production Speed

The conveyor must be capable of keeping up with the weighing and packaging equipment. If the production line requires high output, the conveying capacity should be evaluated together with the required packages per minute and weighing speed.

3. Conveying Height and Layout

The physical layout of the production line also affects conveyor selection. If the product needs to be lifted from a lower feeding point to a multihead weigher, a Z bucket elevator can provide an efficient vertical conveying solution while using relatively limited floor space.

4. Product Damage

For fragile products, excessive dropping and impact should be minimized. The height of product discharge, conveyor speed, bucket design, and transfer points can all affect product integrity.

5. Cleaning and Hygiene

For food packaging applications, conveying equipment should be easy to clean and suitable for the production environment. Materials, conveyor surfaces, accessible components, and equipment structure should all be considered, especially when handling sticky or moist products.

How Conveying Equipment Works With a Weighing and Packaging System

A conveyor is not an isolated piece of equipment in an automated packaging line. A typical system may include:

Feeding System → Conveyor → Multihead Weigher → Packaging Machine

The feeding equipment supplies the product to the conveying system. The conveyor then transports the product to the weighing machine at a controlled rate. The multihead weigher calculates the appropriate weight combination before discharging the product into the packaging machine.

For fragile or sticky products, the conveying system can therefore have a direct influence on both weighing stability and final package quality.

An improperly selected conveyor may cause inconsistent feeding, product buildup, product damage, or reduced production efficiency.

Frequently Asked Questions

1. What is the best conveyor for fragile food products?

A bucket elevator or other gentle conveying solution can be suitable for many fragile food products because it can reduce unnecessary product movement and impact. The exact design should be selected according to product size, fragility, and required production speed.

2. What conveyor is best for sticky products?

There is no single conveyor suitable for every sticky product. Food-grade belt conveyors or bucket-based conveying systems may work depending on the product’s moisture, viscosity, adhesion, and cleaning requirements.

3. Can a Z bucket elevator handle fragile products?

Yes. Z bucket elevators are commonly used to transport products such as chips, nuts, candy, vegetables, and other food products to weighing equipment. The bucket configuration can provide controlled product transfer and reduce unnecessary handling.

4. How do I choose a conveyor for a weighing and packaging line?

Consider product characteristics, required production speed, conveying height, product damage risk, cleaning requirements, and compatibility with the multihead weigher and packaging machine.

5. Can one conveyor handle both fragile and sticky products?

It may be possible, but the conveyor design should be evaluated based on the specific product. Belt material, bucket design, conveying speed, transfer points, and cleaning requirements may need to be customized.

Conclusion

For many fragile products, a Z bucket elevator can provide controlled product handling and efficient elevation to a multihead weigher. For some sticky or moist products, a properly selected food-grade belt conveyor or bucket conveying system may provide better product flow and easier cleaning.

Rather than choosing a conveyor based only on price or standard specifications, it is better to select the equipment according to the actual product and production requirements.

Not sure which conveying equipment is suitable for your product? Share your product type, product characteristics, target weight, required production speed, and packaging requirements with UUPAC. Our team can recommend a suitable conveying, weighing, and packaging configuration for your production line.
